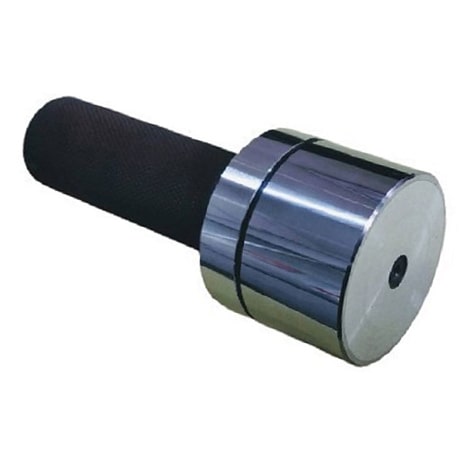

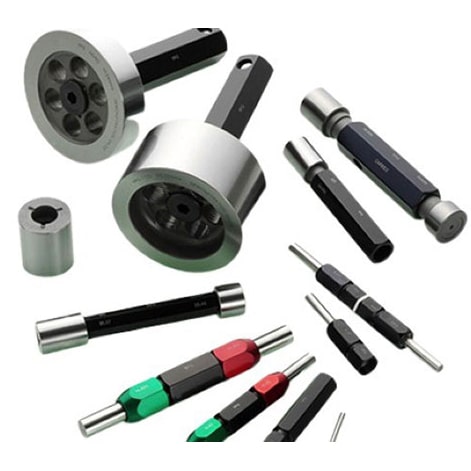

Plain Plug Gauge
Plain Plug gauges are manufactured according to the IS 3455 standards.
Product Features ::
- Engineering Supplies manufactures a wide range of GO and NO-GO gauges which are made of tungsten carbide & steel.
- You can also find GO gauges made in tungsten carbide and NO-GO made in steel.
- Our product range also includes Plain Plug Gauges manufactured as per the I.S., B.S. and DIN standards and customized diameter from 1 – 400mm.
- Our expertise also lies in developing non-standard designs like extra lengths, air grooves, pilots, depth steps and others.
Plain Plug Gauge

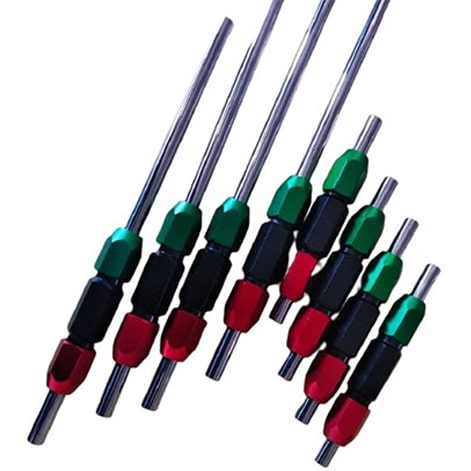

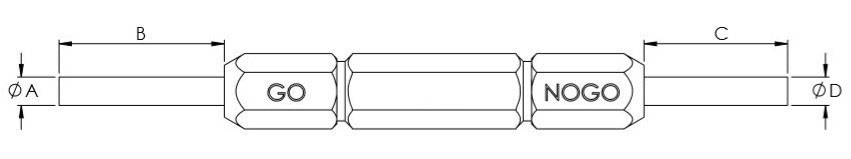

Reversible Plain Plug Gauge:
| Type | Range |
| Reversible | Ø 0.5 - 8 mm |

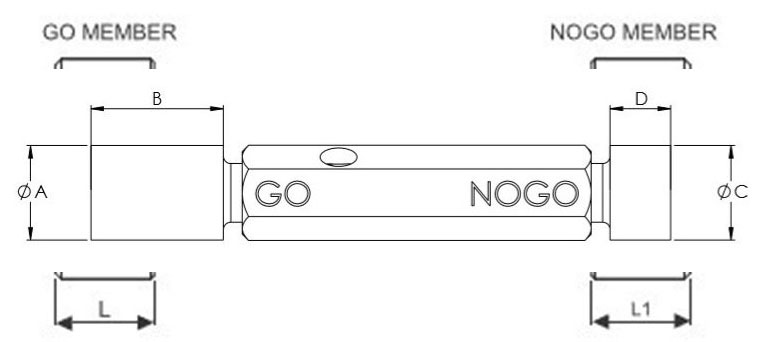

Trilock Plain Plug Gauge:
| Type | Range | Ø 8 - 10 mm | Ø 10 - 14 mm | Ø 14 - 18 mm | Ø 18 - 24 mm |
| Trilock | L/L1 (Carbide) | 20/18 | 20/18 | - | - |
| L/L1 (Carbide) | 25/18 | 30/18 | 35/25 | 40/25 |

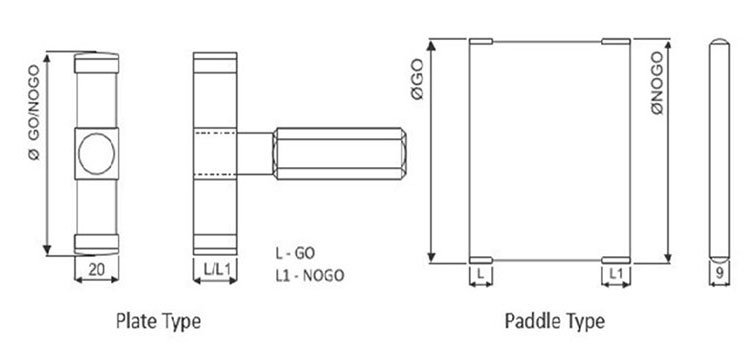

Trilock Plain Plug Gauge – Plate & Paddle:
| Type | Range | Ø 50 - 100 mm | Ø 100 - 200 mm | Ø 200 - 300 mm | Ø 300 - 400 mm |
| Trilock | L/L1 (Carbide & Stelel) | 25/20 | 25/20 | 30/25 | 30/25 |
For over a period of 11 years, engaged in Trading and Manufacturing of quality Thread Gauges in India.
-
We are the leading manufacturer of wide range of advanced and high accuracy thread gauges as per customer requirements. Visit our site for more details.
