Unique cutting cavity design provides straight cuts
Replaceable hollow ground blade cuts quickly and easily

TECHNICAL DATA OVERVIEW

Recommended for cutting of PEX, PE-RT, Poly tubing, HDPE up to 1’’:

–	Replaceable v shaped hollow ground blade
–	Blade safely stores in jaws when locked
–	Soft molded, spring loaded handles
–	Thumb actuated lock

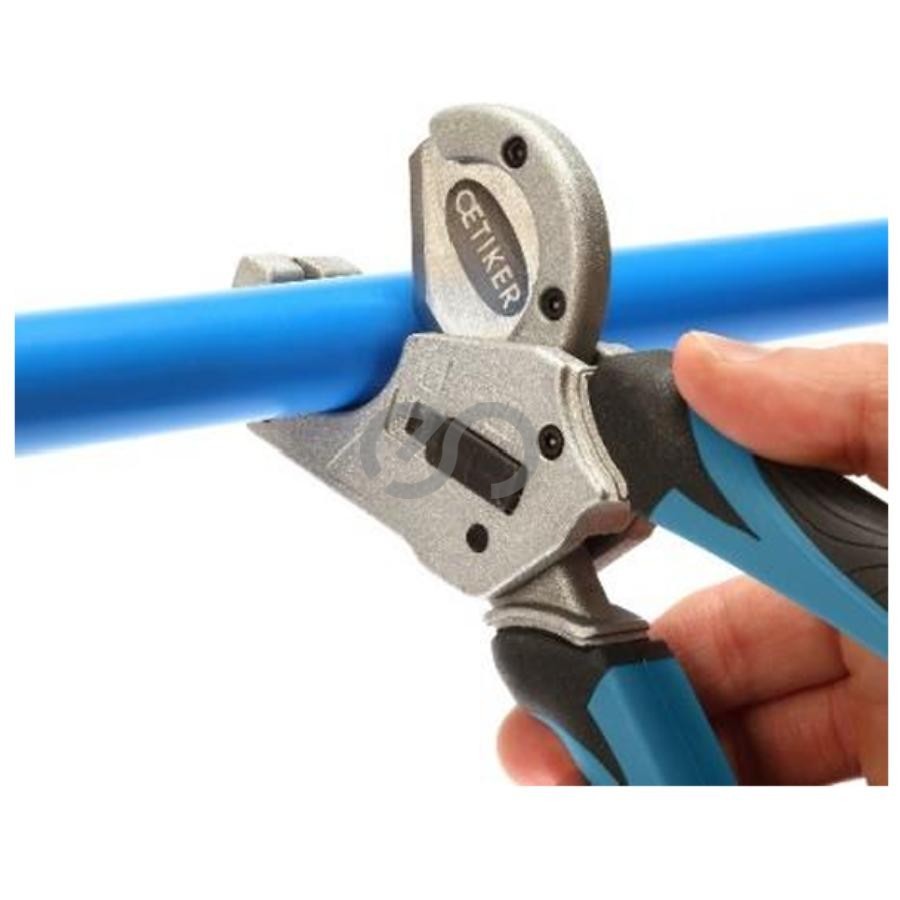

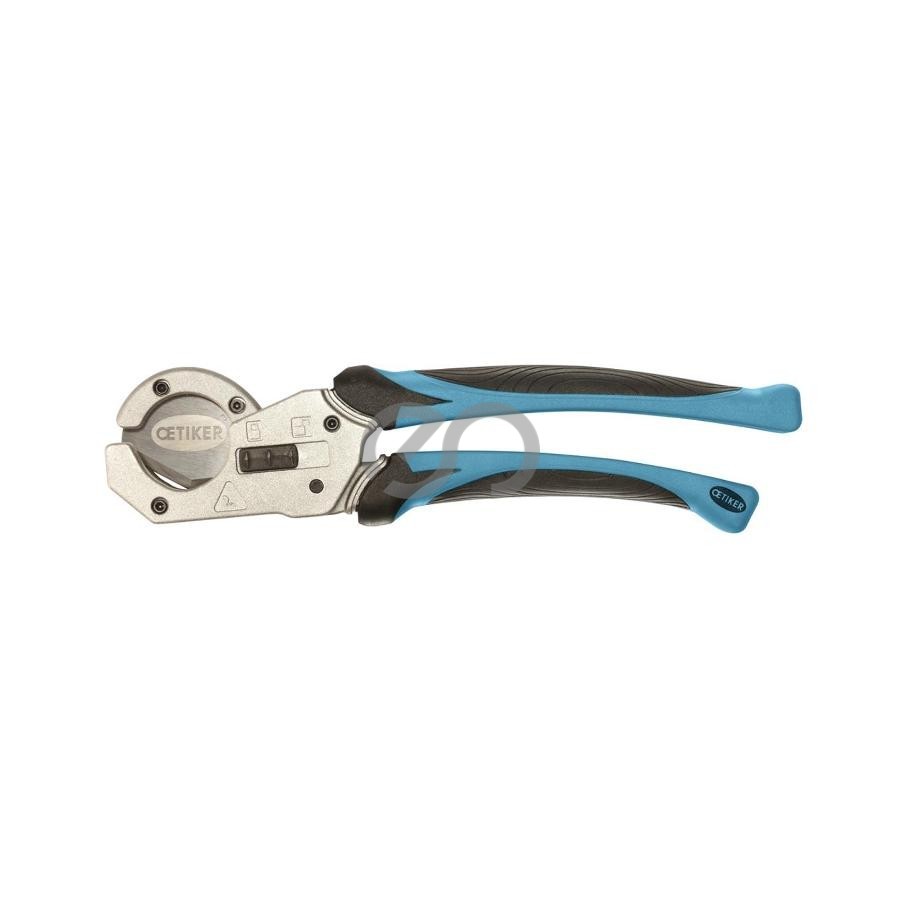

Oetiker Hand Tube Cutter HTC 500 | 504 is designed to safely cut PEX, PE-RT, Poly tubing and HDPE straight and flat.

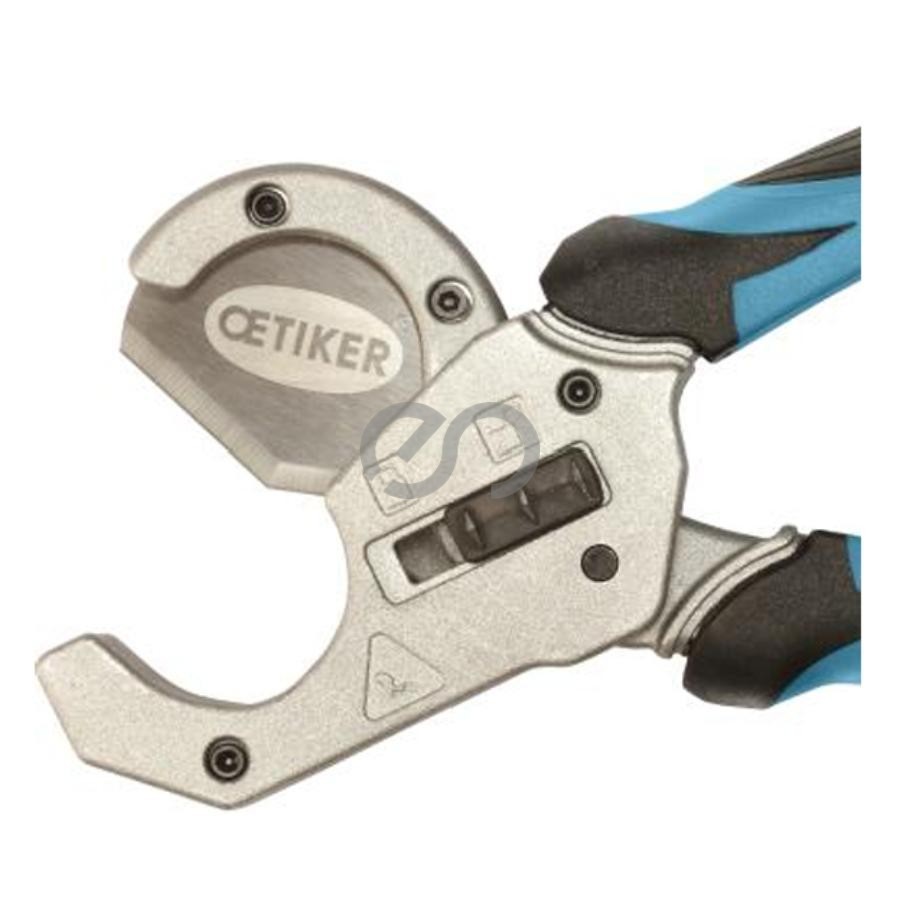

Replaceable v-shaped blade cuts into tubing and maintains tubing roundness.

Specially designed flats on cutting cavity ensure tubing remains straight during cutting, resulting a straight cut every time.

Blade stores within the cutting cavity when not in use, eliminating unsafe sharp edges when stored.

Spring loaded ergonomic curved handles feature soft molded grips for ease of use.

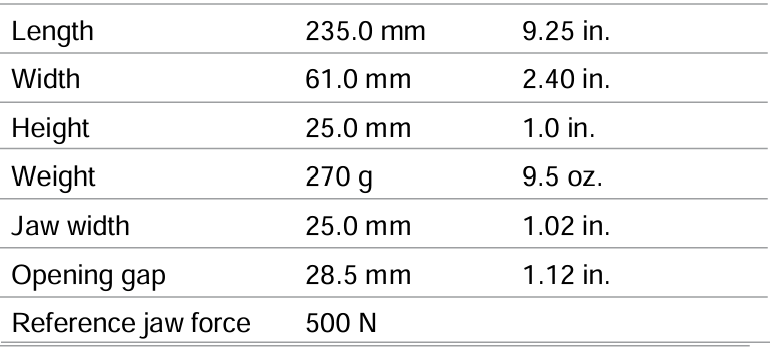

DIMENSIONS
