2-Ear Design: Offers an extended clamping range for greater flexibility across various applications.
Compact One-Piece Clamp: Ensures a strong, reliable, and tamper-resistant connection.
Clamp Ear Feature: Enables quick and easy installation, with visible deformation as a clear indicator of proper closure.
Deburred Strip Edges: Helps prevent damage to clamped components, ensuring safe and secure installation.

FEATURES

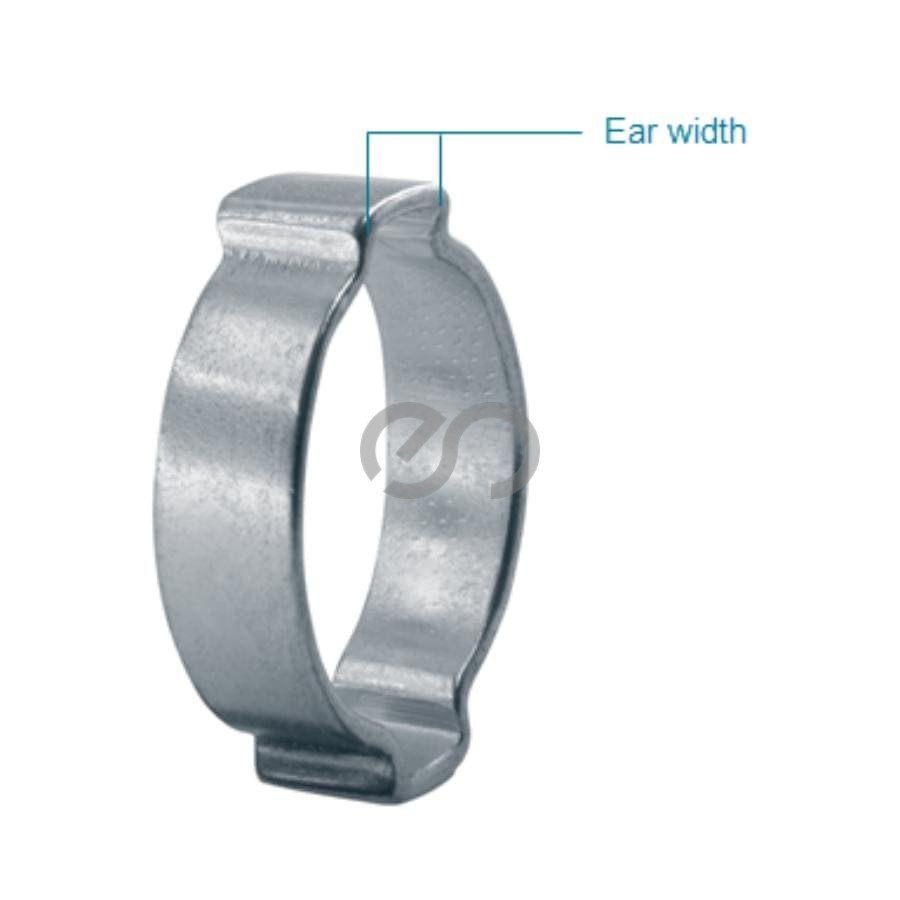

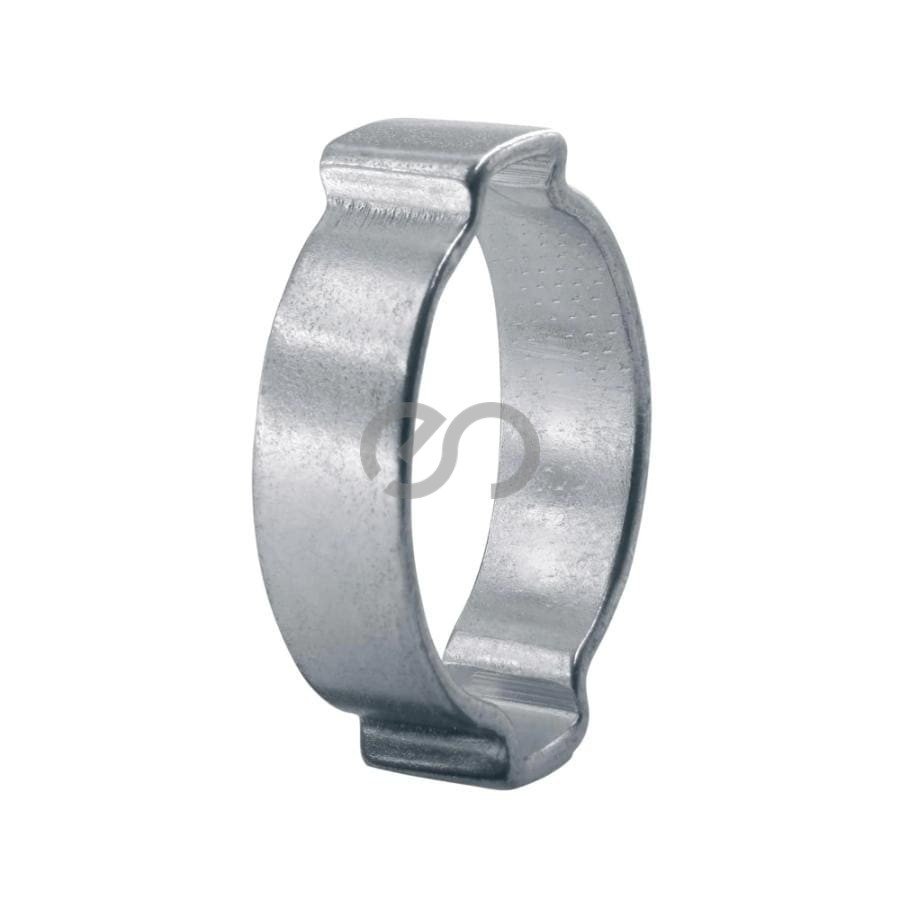

The ears of these clamps do not have a dimple and nearly double the clamping range, compared to the 1-ear clamp. 2 ears provide a degree of elasticity to accommodate changes in size of the parts being joined, such as that which may be caused by thermal expansion or vibration.

Installation techniques are similar to those for 1-Ear Clamps, but the force applied when closing the second ear may react against the opposing closed ear and make a second crimping operation necessary. For perfect sealing, the ears must be adequately closed during installation.

MATERIAL

101 Steel, material no. 1.0338/SAE 1008/1010, zinc-plated
151 Stainless Steel, Material no. 1.4307/UNS S30403

SERIES

Size range
4.1 – 46.0 mm
