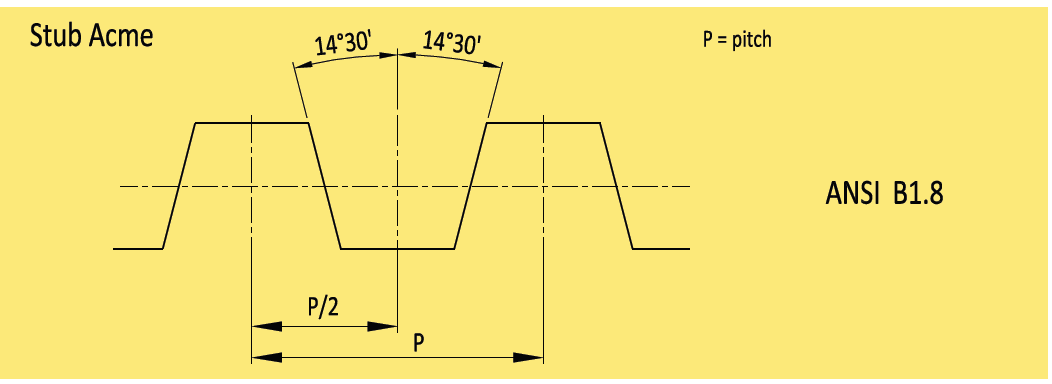

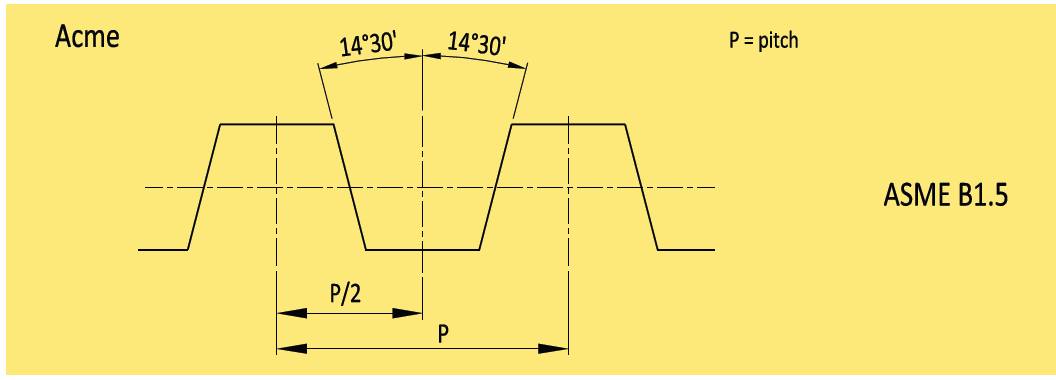

ACME as per ASME B1.5 standards & STUB ACME as per ANSI B1.8 standards.

2G is the most commonly used class. If you wish to have lesser backlash in ACME threads, we can use 3G & 4G class. Also, the height of ACME threads is 0.5p and the height of Stub ACME threads is 0.3p.

THREAD GAUGE PROFILE

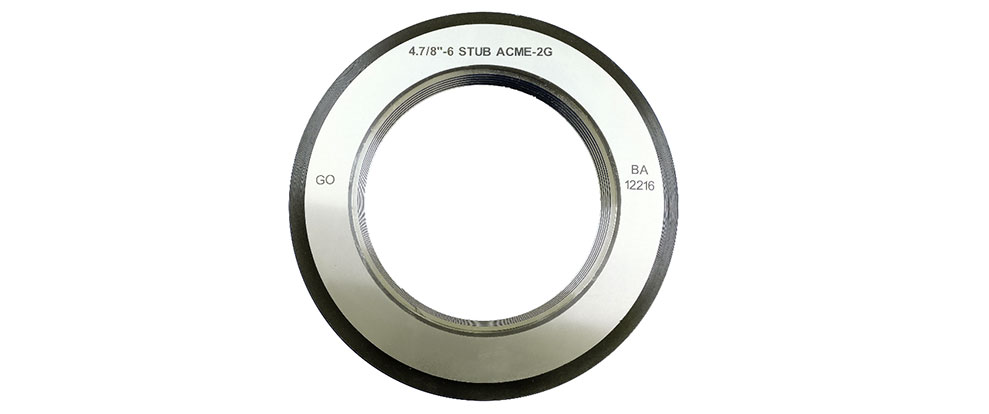

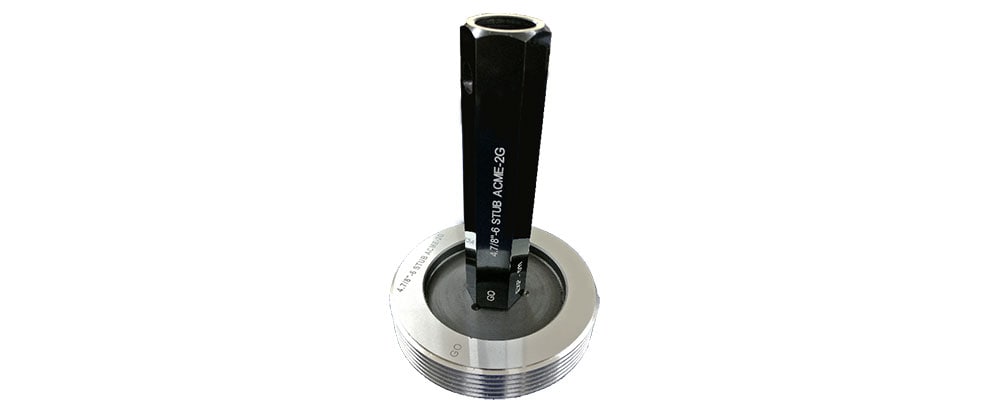

GO Gauge: When the GO gauge enters and passes the complete length of the work piece thread under the condition that it is screwed by hand and does not use excessive force.

NOT GO Gauge: When the NOT GO gauge do not enter the component by more than two turns of the thread from both ends under the condition that it is screwed by hand and does not use excessive force


For over a period of 11 years, engaged in Trading and Manufacturing of quality Thread Gauges in India.
